MKIII Supra DIfferentials that fit MX83

Post by forgottenzone on Wed Oct 02, 2013 2:06 pm

These Diffs can be used eather to swap internals to our Differential pumpkins, or to replace our Differential with MKIII once.
Our Rear wheel axles bolt right up and are strong enough. Don't need any replacement unless they are no good.
first 2 are NON - LSD options.
the bottom 3 are Clutch LSD's.

G284 = 4.30:1 4-pinion 8.0" pre-89 N/A Diff (no-LSD, USA Only)
G282 = 4.30:1 2-pinion 8.0" 89+ N/A Diff (no-LSD, USA Only)
G285 = 4.30:1 4-pinion 8.0" N/A Diff (with-LSD)
G315 = 3.91:1 4-pinion 8.0" pre-89 Turbo Diff (with-LSD)
G305 = 3.73:1 4-pinion 8.0" 89+ Turbo Diff (with-LSD)

I have G315. Very hard to find. many used parts and junk yards don't even know they made these.
They can be found only in 87-88 turbo MKIII's I believe only Automatics. if you find them localy and can go and look at the donor car look at the plate on the drivers side fire wall in the engine bay for the Diff. code. this will tell you what Diff. it has.

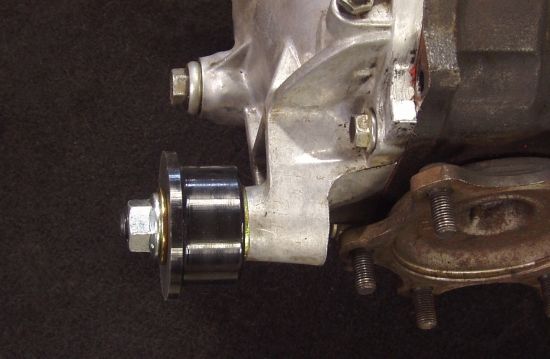

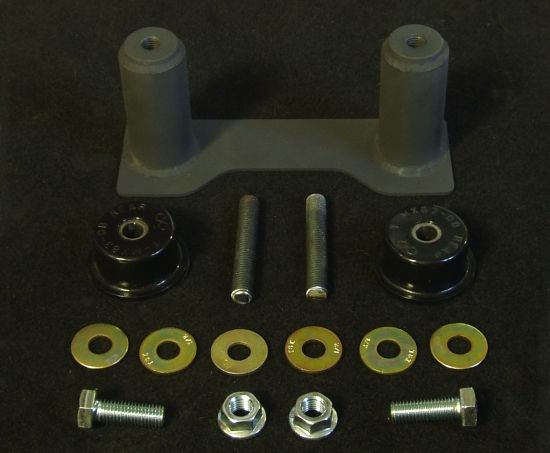

If you want to use MKIII Differential Xcessive Manufacturing offers a weld on to sub frame kit with polly bushings. You will need to use your Rear aluminum Cressida DIff cover. to be able to mount it to the Cressida Subframe.

Here is the link for their Kit:

MKIII Kit








Last edited by forgottenzone on Thu Nov 07, 2013 8:17 am; edited 2 times in total
avatar
forgottenzone

Posts : 76
Join date : 2013-07-29
Location : New Jersey USA

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by kamesama980 on Wed Oct 23, 2013 12:58 pm

Luckily the gears are interchangeable on the diff (and obviously must be kept as a set) so you can use the VERY common MX83 3.91 set.

Good info.
avatar
kamesama980

Posts : 89
Join date : 2013-02-28
Age : 33
Location : Columbus, IN

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by Gordon Duax on Wed Oct 23, 2013 1:25 pm

There are aftermarket gear sets available all the way up to 5.8.
(Toyota truck V6 gear sets)
I run 4.56 that is actually from a GX81 in Japan.
Another available set from the factory was 4.1 (possibly from the JZA70 Supra).
Truck gear sets are 4.1, 4.56, 4.88, 5.29, and 5.8.
avatar
Gordon Duax

Posts : 96
Join date : 2013-03-03
Location : San Antonio, Texas

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by cmdeshon on Thu Oct 24, 2013 7:08 am

is the G315 in all 86-87 MK-III Turbo's or just the automatic ones? i thought that all the manual's had 3.73's. (im not sure though...)

i have an LSD diff that i kept from an 87 MK-III Turbo that was a 5-speed car. i never thought to check the VIN plate.

any idea what gear ratio it is? i dont really want to put 3.73's in my factory X8.

cmdeshon

Posts : 57
Join date : 2013-02-27

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by Gordon Duax on Thu Oct 24, 2013 8:56 am

Early Mk3s had 3.9s

avatar
Gordon Duax

Posts : 96
Join date : 2013-03-03
Location : San Antonio, Texas

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by RayRay on Thu Oct 24, 2013 10:33 am

Is that info only for mk3 or x8 or is that for all toyotas? or a more direct question, will those charts decipher the diff in my x7?

RayRay

Posts : 114
Join date : 2013-04-29

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by Gordon Duax on Thu Oct 24, 2013 11:41 am

All Toyotas.
No Supra ever came with a 6" or 14" ring gear.
avatar
Gordon Duax

Posts : 96
Join date : 2013-03-03
Location : San Antonio, Texas

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by cmdeshon on Thu Oct 24, 2013 3:47 pm

thanks! i guess i should stuff that thing in one of these days....

cmdeshon

Posts : 57
Join date : 2013-02-27

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by kamesama980 on Mon Oct 28, 2013 7:45 am

Truck 4x4 gears might be in the 4.1+ range but 2wd V6s have 8" diffs down to mid-3.xx. My truck right now has a 3.07 8" but it's a 4cyl and might have a different pinion length. I know there are different housings for 4cyl vs 6cyl/4x4, I think different pinion lengths to go with it.
avatar
kamesama980

Posts : 89
Join date : 2013-02-28
Age : 33
Location : Columbus, IN

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by RayRay on Mon Oct 28, 2013 10:30 am

maybe this is threadjacking or whatever and my car is an x7 not an x8 but i'm gong to ask here anyway. I have read a fair bit about the x7 but all I have heard is that the come with an open diff unless they were a factory 5 speed? I've known from day 1 there was an LSD in mine but I thought it was swapped in after and I lucked out. anyway my diff code is F293. Was the LSD just an option? If so was anything else in that package?

RayRay

Posts : 114
Join date : 2013-04-29

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by cmdeshon on Mon Oct 28, 2013 11:43 am

might have been a factory option. i know that toyota sold a lot more cars with LSD's in them up in canada. if it says F293 on your data plate than it must have come with the car.

cmdeshon

Posts : 57
Join date : 2013-02-27

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by RayRay on Mon Oct 28, 2013 12:32 pm

I know it's factory now that I looked at the plate. I thought it was swapped in before I saw this.

RayRay

Posts : 114
Join date : 2013-04-29

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by Benakatc on Mon Nov 25, 2013 6:03 pm

With a jz in the front you would want at least a 4.3 LSD to make use of the rev ability and have sweet takeoff

Benakatc

Posts : 3
Join date : 2013-11-24

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by Gordon Duax on Tue Nov 26, 2013 9:48 pm

With a 1jz in the front you would want at least a 4.3 LSD to make up for the lack of torque.
With a 2jz, you won't have the problem.

There, fixed it........Smile
avatar
Gordon Duax

Posts : 96
Join date : 2013-03-03
Location : San Antonio, Texas

View user profile

Back to top Go down

Re: MKIII Supra DIfferentials that fit MX83

Post by cmdeshon on Thu Nov 28, 2013 9:34 am

Lmao, well said!

1j = failboat.

cmdeshon

Posts : 57
