MK3 Rear Struts & Lowering Springs

by forgottenzone Fri Oct 25, 2013 12:08 am

Here is the information that I used to lower and improve the ride of my Cressida without spending Crazy money for coilovers that don't last.

The following may only apply to KYB shocks. No promises about other brands:

KYB part number for the supra struts:

KYB GR2's # 341-070

The spring seat on the supra strut is way too big for the mx83 spring.
Once you remove the OEM KYB Struts from Cressida You need to take the Bump Stop,
Then use a rubber mallet to tap off the Spring Seat of the Strut.
Do the same thing for the new KYB Supra strut you purchased.
Then mount the Cressida Spring Seats onto the New Supra Struts.
Use Cressida Bump Stop And Top Mount.
Use a round file to make the strut fit inside the cressida top mount.

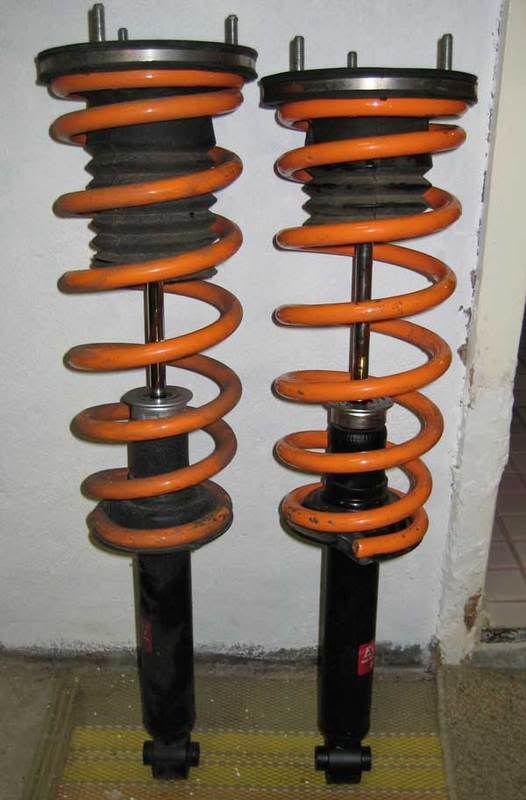

The picture shows the cressida strut on the left and the supra one on the right.
The supra one is shorter since the strut has about 20mm less travel.
It doesn't affect the ride height just the preload on the spring.
Its actually better for running lowered springs etc.
MK3 Rear Struts & Lowering Springs Supra-and-cressy-sturt

MK3 Rear Struts & Lowering Springs Supra-and-cressy-sturt

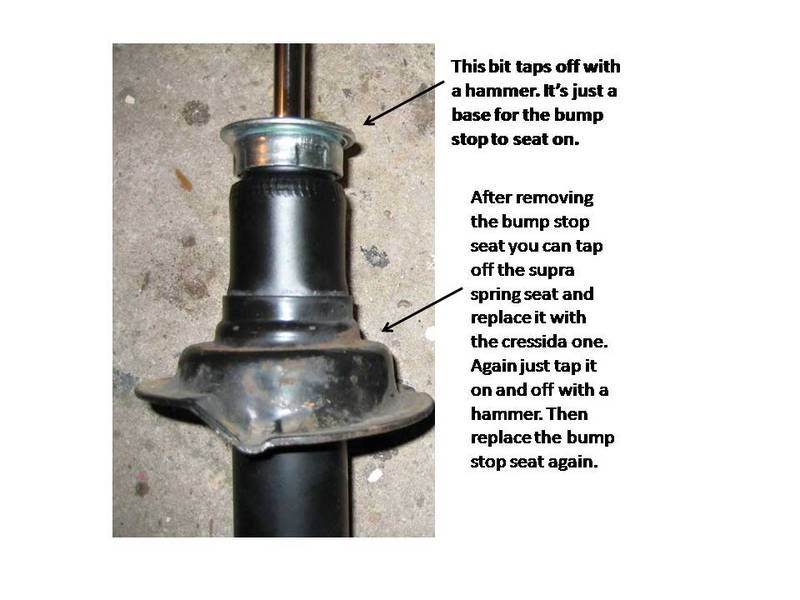

Here is how you change the spring seat from the big supra one to the smaller cressida one.

MK3 Rear Struts & Lowering Springs SupratoCressystrut

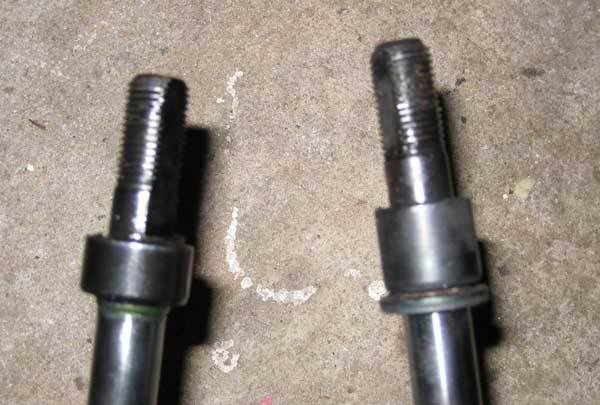

Strut ends are little Different. Supra Left, Cressida Right

MK3 Rear Struts & Lowering Springs Strut-ends-Supra-left

No more bottoming when you come down after a speed bump.
And a lot better ride.

Here is the Front Rav4 Strut Inserts Post that work with these MK3 rears:

RAV4 Front Strut Inserts Link
